XPLC300 Controller and G-SOLWHI-5/100 diver
EtherCAT fieldbus vertical motion controller
XPLC300 Series controller is a kind of EtherCAT fieldbus vertical motion controller, it supports LAD, ZBasic program. Itself supports maximum 12 axes, can extend to up to 16 axes to do point to point, electronic cam, linear interpolation, etc. But needs with main computer expand IO or AIO sub-module.

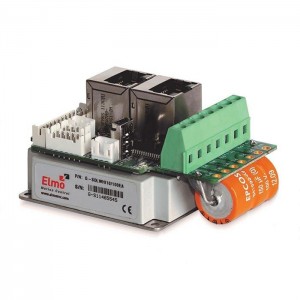

The Gold Solo Whistle is a compact, integrated digital servo drive that weighs just 106 g (3.74 oz) and offers up to 1.6 kW of continuous power or 3.2 kW of peak power.
The Gold Solo Whistle is an integrated solution designed to simply and efficiently connect the Gold Whistle servo drive directly to the application. The solution consists of the Gold Whistle together with a convenient connection interface which either eliminates or reduces development time and resources when designing an application’s PCB board.
This advanced, high power density servo drive provides top performance, advanced networking and built-in safety, as well as a fully featured motion controller and local intelligence. The Gold Solo Whistle is powered by a single 12 V – 95 V isolated DC power source (not included) and a “smart” control-supply algorithm enables the drive to operate with only one power supply with no need for an auxiliary power supply for the logic.
In conjunction with the Gold Maestro, the ultimate distributed network motion controller, and the other members of the Gold Line of intelligent servo drives, state-of-the-art solutions for the most challenging multi-axis motion applications can be easily implemented, with a short development cycle while maintaining high performance.

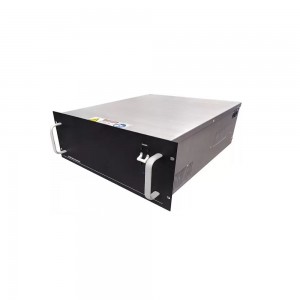

We integrate the XPLC300 controller and G-SOLWHI-5/100 driver inside the chassis,
Add a 220V AC (120V AC) to 24V DC motor and an external chassis to integrate a control box.
It can be directly powered by 220V AC (120V) AC power supply.
Control box size: 360*310*180mm,
| Item | Specification |
| Basic Axes | 4axes |
| Max Axes | 4 |
| Basic Axes Type | EtherCAT |
| IO channels | 1 in 0 out，more expand IO module |
| AIO channels | NO, please expand AIO sub-module |
| Max IOs | 512 inputs, 512 outputs |
| Max AIOs | 128 ADs，64 DAs |
| Pulse resolution | 32 |
| Encoder resolution | 32 |
| Speed resolution | 32 |
| Axis Motion Buffer | 128 |
| Array Space | 320000 |
| VR | 1024 |
| Procedure Space | 6144kbyte |
| Flash space | 8129kbyte |
| Power supply | 24VDC |
| Power comsuption | 2.5W |
| inner comsuption of later level module | 6W |
| Communication interface | Ethernet、RS232、RS485 |
| Sub-module extend | 16 input/output module, 8 AD/DA |
| Max sub-module IOs | 256 inputs, 256 outputs |
| Max sub-module AIOs | 32 ADs，32 DAs |
| Item | Specification |
| Minimum supply voltage | 12V |
| Nominal supply voltage | 85V |
| Maximum supply voltage | 95V |
| Maximum continuous power output | 400W |
| Efficiency at rated power (at nominal conditions) | > 99% |
| Maximum output voltage | > 95% of DC bus voltage at f = 22 kHz |
| Auxiliary power supply | 12 to 95 VDC |
| Amplitude sinusoidal/DC continuous current | 5A |
| Sinusoidal continuous RMS current limit (Ic) | 3.5A |
| Peak current limit | 2 x Ic A |
| Weight | 106 g |
