1 . W ide speed range
Because the frameless part of the linear motor is a non-contact part , there is no mechanical transmission limit , so it
is easy to achieve very high and very low speed . T he speed is not limited by the motor, but will be limited by other
components in the system , such as linear bearings and the bandwidth that can be achieved from any feedback
device . A pplication speeds of more than 5 m / s can usually be achieved . I n contrast , due to resonance and wear,
mechanical drives such as ball screws usually limit the linear speed to 0 .5 ~ 0 .7 m / s . I n addition to a wide speed
range , sum-dm series linear motors have very good constant speed characteristics . T he speed fluctuation is
usually less than ± 0 .01% .
2 . H igh system dynamic performance
I n addition to high-speed capability, sum-dm linear motor also has extremely high acceleration . It is limited only by
the system bearings . Large motors can usually reach an acceleration of 3 ~ 5g , while small motors can easily
reach an acceleration of more than 10g .
3 . Stable operation and high positioning accuracy
D ue to the unique motor design of sum-dm series products , this series of linear motors have very stable motion
curves . T his direct drive linear motor has very low thrust and speed fluctuation suitable for smooth motion . T he
positioning accuracy is limited only by the feedback resolution , which can usually reach the resolution below
micron .
4 . U nlimited travel
T he magnetic circuit of sum-dm is composed of five modular parts with lengths of 120 , 180 , 240 , 300 and 600 (mm)
respectively. A ny number of other modules can be added to any module to realize unlimited travel . T his series of
products can meet the requirements no matter whether the required travel is 1 mm or 100m .
5 . No wear or maintenance free
T here are few linear motor parts , and there is no need for ball screw parts such as nut , bearing seat , coupling and
motor base , and there is no need to maintain these parts . Ve ry long service life , clean operation , no lubrication or
maintenance of such parts .
6 . S ignificantly reduce the difficulty of component integration
F rameless linear motors require fewer components than rotating motors with mechanical drive . For frameless

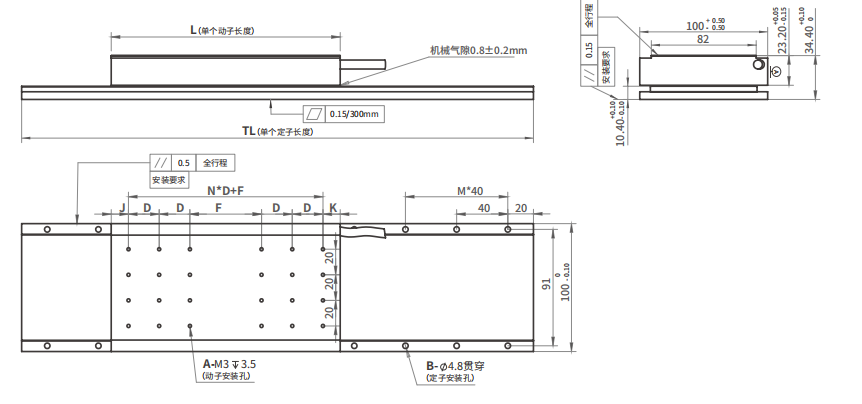

linear motor components , only 0 .8 mm (0 .031 inch) air gap and 0 .5 mm (0 .020 inch) air gap need to be adjusted .
T here is no need to make key adjustments like ball screw. T he linear bearing of the system ensures full stroke
straightness ,fully meet the requirements of motor.
Model parameters | Company | E-SWL-BZ-S0 | E-SWL-BZ-S1 | E-SWL-BZ-S2 | E-SWL-BZ-S3 | |||||||||||||||||||||||||||||||||||||||||||||||
performance parameter | ||||||||||||||||||||||||||||||||||||||||||||||||||||
Continuous force (At temperature Tmax) | N | 99 | 164 | 328 | 492 | |||||||||||||||||||||||||||||||||||||||||||||||
Peak force | N | 329 | 546 | 1092 | 1638 | |||||||||||||||||||||||||||||||||||||||||||||||
Electrical parameters | ||||||||||||||||||||||||||||||||||||||||||||||||||||
Pole pitch (N-S) | mm | 10 | 10 | 10 | 10 | |||||||||||||||||||||||||||||||||||||||||||||||
Continuous current (At temperature Tmax) | Arms | 2.5 | 3 | 6 | 6 | |||||||||||||||||||||||||||||||||||||||||||||||
Peak current (Duration1s) | Arms | 11.5 | 13.8 | 27.4 | 27.4 | |||||||||||||||||||||||||||||||||||||||||||||||
Force constant (At25°C± 10%) | N/Arms | 33 | 54.6 | 54.6 | 82 | |||||||||||||||||||||||||||||||||||||||||||||||
Back EMF (在25°C± 10%) | V/m/s | 27 | 44.8 | 44.8 | 67.3 | |||||||||||||||||||||||||||||||||||||||||||||||
Motor constant (At 120°C) | Nm/√w | 9.9 | 12.8 | 18.2 | 22.1 | |||||||||||||||||||||||||||||||||||||||||||||||
Inductance (At25°C±20%) | mH | 15.2 | 25.4 | 13.1 | 26 | |||||||||||||||||||||||||||||||||||||||||||||||
Resistance (At25°C± 10%) | Ω | 5.8 | 4 | 2.7 | 4.2 | |||||||||||||||||||||||||||||||||||||||||||||||
Attractive Force | KN | 0.74 | 1.28 | 2.56 | 3.84 | |||||||||||||||||||||||||||||||||||||||||||||||
Thermal parameters | ||||||||||||||||||||||||||||||||||||||||||||||||||||
Maximum coil temperature | ℃ | 150 | 150 | 150 | 150 | |||||||||||||||||||||||||||||||||||||||||||||||
Mechanical parameters | ||||||||||||||||||||||||||||||||||||||||||||||||||||
Mover mass (coil) | Kg | 0.95 | 1.8 | 2.6 | 3.5 | |||||||||||||||||||||||||||||||||||||||||||||||
Stator Mass | Kg/m | 6.9 | 6.9 | 6.9 | 6.9 |
