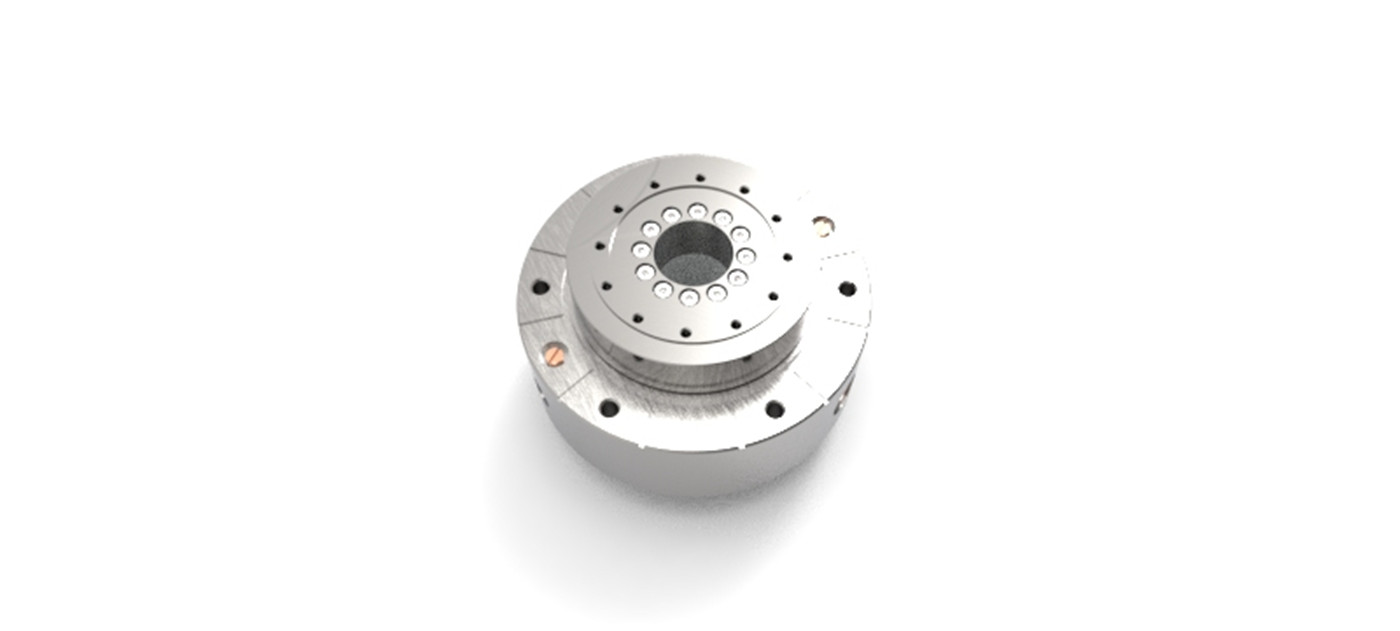

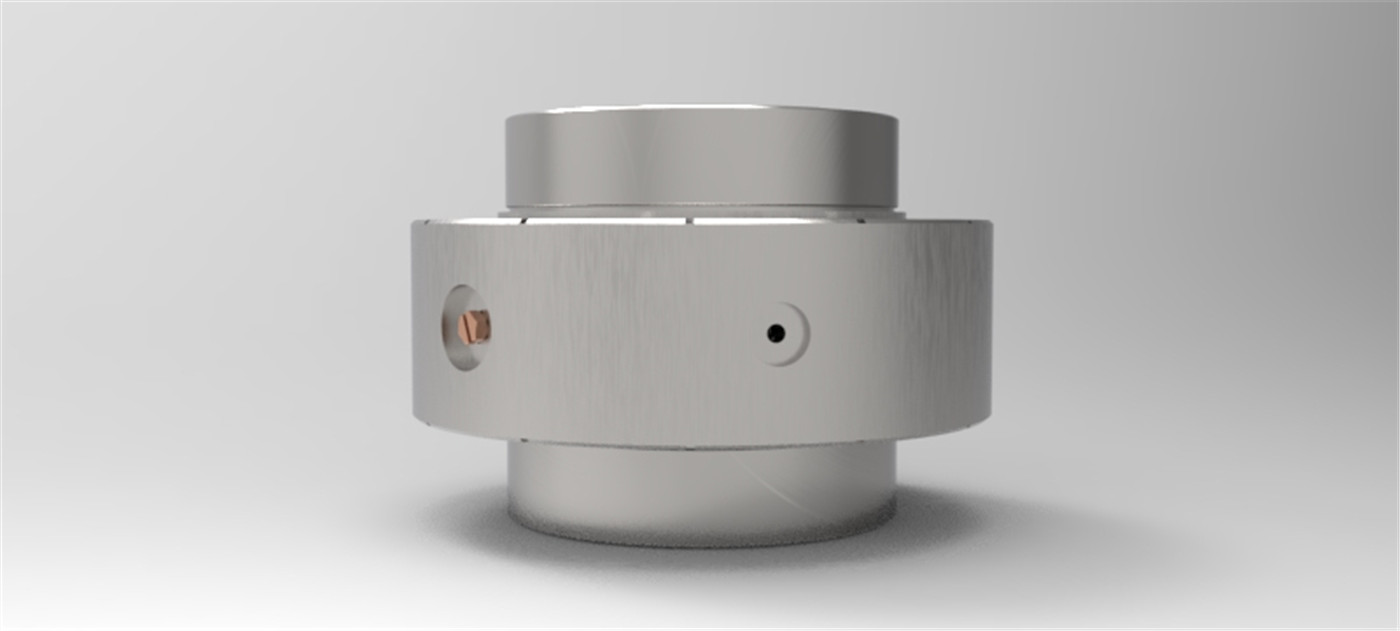

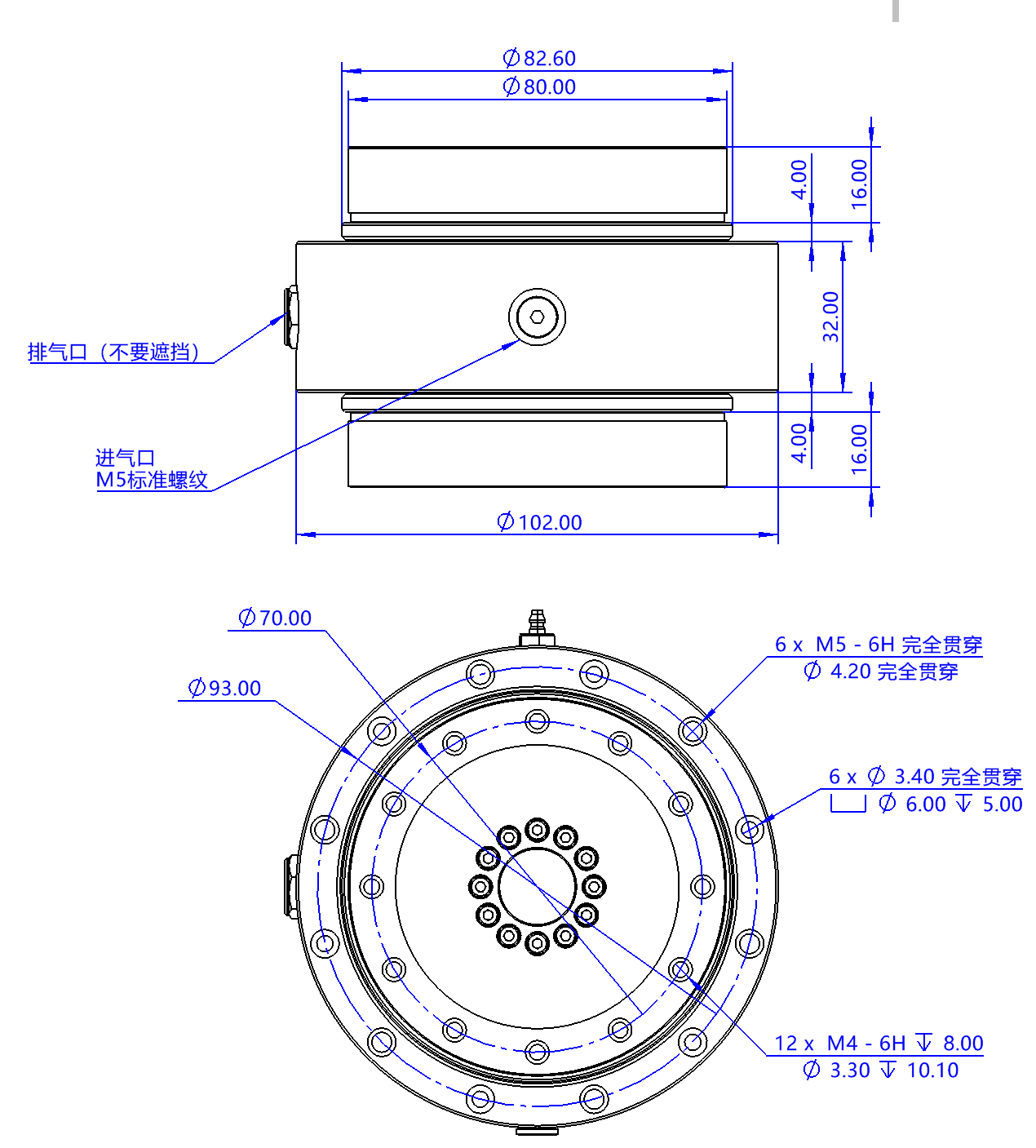

E-ABR80 Unpowered air bearing rotary stage
Design Features
● Delivers best-in-class rotational motion, helping you to optimize your high-precision process
● Minimizes axial-, radial-, and tilt-error motions, reducing the need for extensive post-processing of parts and measurement data
● Provides generous load-carrying capacity without compromising on motion quality
● Integrates easily into precision systems and machines due to compact, lightweight form factor, as well as horizontal and vertical mounting and load-carrying capabilities
● Key Applications
● E-4R-NG stages are ideal for high-precision applications, including:
● Surface metrology, including the measurement of roundness, flatness, and form error
● Micro- and nanotomography
● Beamline and synchrotron research
● Precision manufacturing, including diamond turning, grinding and other high-performance machine tool applications
● Optical alignment, inspection and calibration systems
● Engineered for Precision
● The E-4R-NG series is meticulously engineered to consistently satisfy even the most stringent performance requirements.At its core is an industry-leading, air-bearing technology that delivers nanometer-level error motion performance with high stiffness and load-carrying capabilities.
● Simple, Straightforward Integration
● E-4R-NGfeatures an advanced bearing design that provides excellent stiffness and high load capacity, while maintaining compact overall dimensions and reasonably low overall mass. This makes E-4R-NG ideal to use as a component stage in multi-axis motion systems and precision turnkey machines. E-4R-NG stages can be mounted with the axis of rotation oriented either vertically or horizontally
Maintenance-Free Operation
The E-4R-NG completely contactless air-bearing and non-influencing motor design ensures years of maintenance-free operation. Zero contact between moving elements means there is no wear or reduction in performance over time, enabling consistent, high-precision motion over a virtually unlimited service life.
| Stationary state | working status | ||
|
minimum load |
Radial direction | 190N | 95N |
| Axial direction | 500N | 250N | |
| Flip direction | 10Nm | 5Nm | |
| Minimum rigidity | Radial direction | 60N/um | |
| Axial direction | 175N/um | ||
| Flip direction | 0.12Nm/urad | ||
| Synchronous motion error | Radial direction | 100nm | |
| Axial direction | 100nm | ||
| Flip direction | 1urad | ||
| Mass | Total | 3200g | |
| rotor | 1300g | ||
| Moment of inertia | 0.0009kg·m2 | ||
| Max Rotating speed | 15,000rpm | ||
| Maximum air consumption | 20SLPM | ||
