E-ABR100 Unpowered air bearing rotary stage


E-ABR100 Unpowered air bearing rotary stage

Short Description:

● Cleanroom compatible

● Motion platform diameter from 100 mm to 300 mm

● Eccentricity and flatness < 100 nm

● Can be mounted vertically or horizontally

● Design Features

● Delivers best-in-class rotational motion, helping you to optimize your high-precision process

● Minimizes axial-, radial-, and tilt-error motions, reducing the need for extensive post-processing of parts and measurement data

Product Detail



Product Tags

Short Description

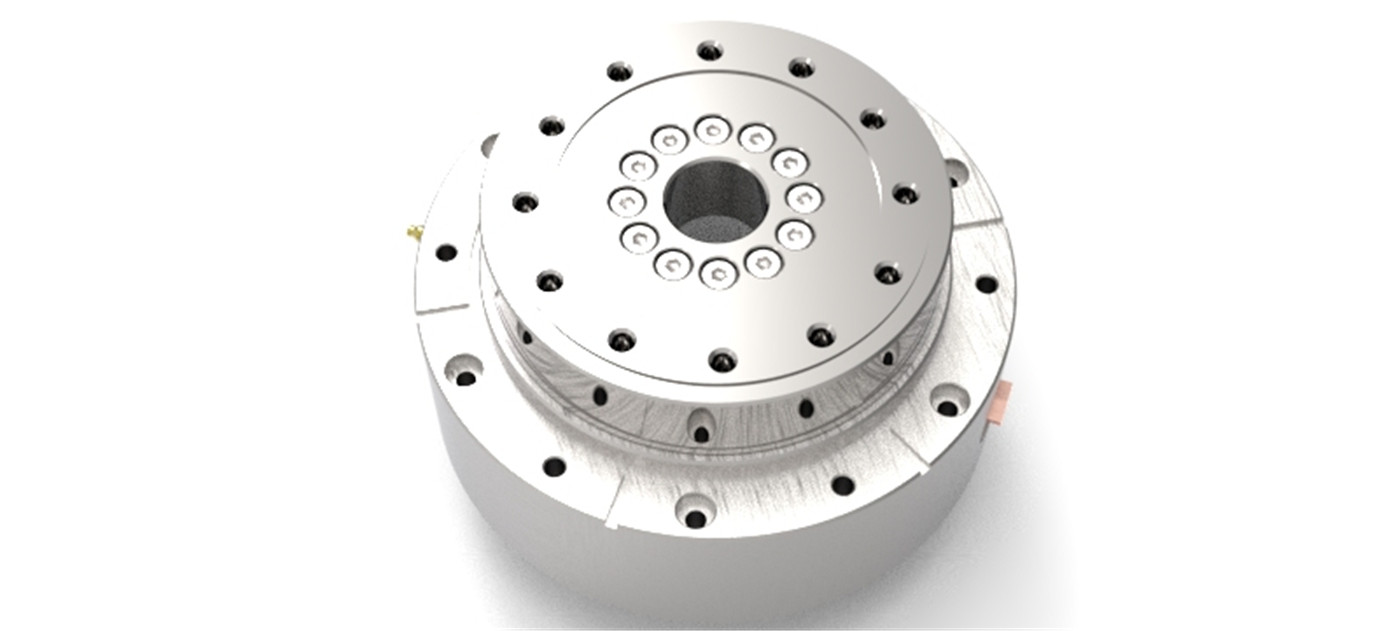

3R-NG Unpowered Air Bearing Rotary Stage1 (1)

● Provides generous load-carrying capacity without compromising on motion quality

● Integrates easily into precision systems and machines due to compact, lightweight form factor, as well as horizontal and vertical mounting and load-carrying capabilities

● Key Applications

● E-3R-NG stages are ideal for high-precision applications, including:

● Surface metrology, including the measurement of roundness, flatness, and form error

● Micro- and nanotomography

● Beamline and synchrotron research

● Precision manufacturing, including diamond turning, grinding and other high-performance machine tool applications

● Optical alignment, inspection and calibration systems

● Engineered for Precision

● The E-ABR100 series is meticulously engineered to consistently satisfy even the most stringent performance requirements. At its core is an industry-leading, air-bearing technology that delivers nanometer-level error motion performance with high stiffness and load-carrying capabilities.

● Simple, Straightforward Integration

● E- AB R100 features an advanced bearing design that provides excellent stiffness and high load capacity, while maintaining compact overall dimensions and reasonably low overall mass. This makes E-ABR100 ideal to use as a component stage in multi-axis motion systems and precision turnkey machines. E-3R-NG stages can be mounted with the axis of rotation oriented either vertically or horizontally

● Maintenance-Free Operation

● The E-3R-NG completely contactless air-bearing and non-influencing motor design ensures years of maintenance-free operation. Zero contact between moving elements means there is no wear or reduction in performance over time, enabling consistent, high-precision motion over a virtually unlimited service life.

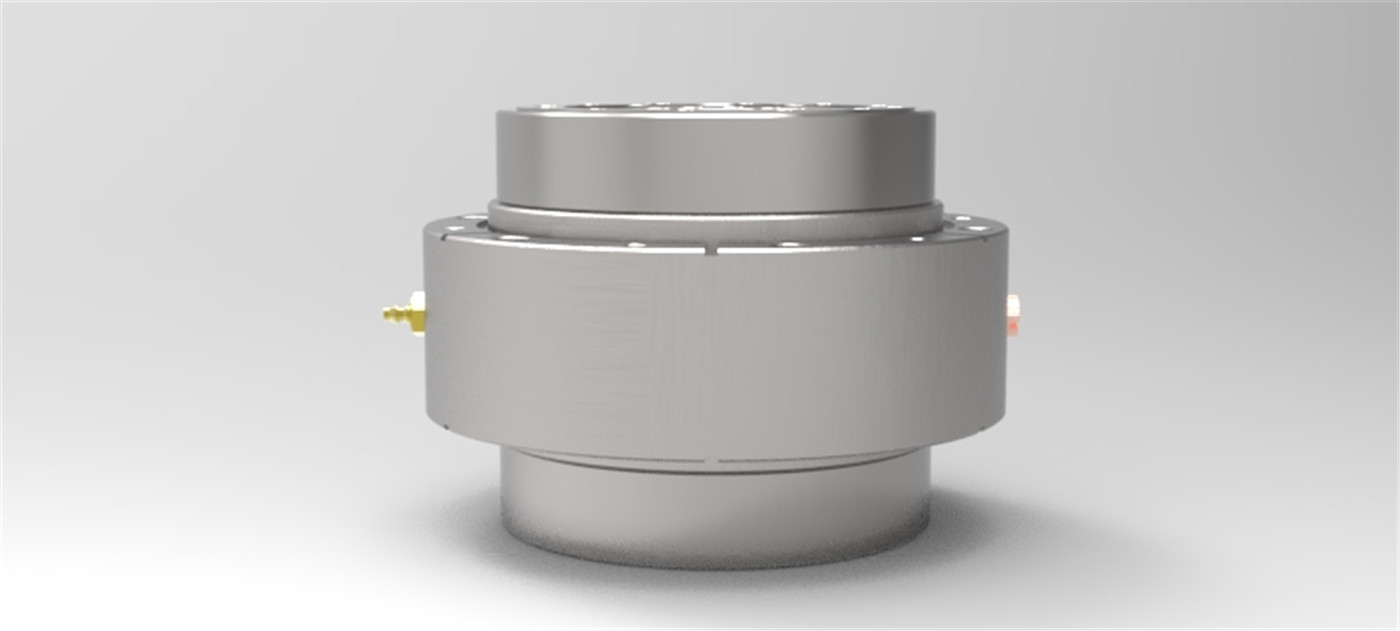

3R-NG Unpowered Air Bearing Rotary Stage1 (2)

  • Previous:
  • Next:

  • Stationary state working status

    Minimum load

    Radial direction 300N 150N
    Axial direction 1200N 600N
    Flip direction 30Nm 15Nm

    Minimum rigidity


    Radial direction 80N/um
    Axial direction 230N/um
    Flip direction 0.3Nm/urad

    Synchronous motion error

    Radial direction 100nm
    Axial direction 100nm
    Flip direction 1urad
    Mass Total 9300g
    rotor 3300g
    Moment of inertia 0.005kg·m2
    Max Rotating speed 7,500rpm
    Maximum air consumption 23SLPM
