E-ABR250 Rotary air bearing stages

Short Description:

This series is meticulously engineered to consistently satisfy even the most stringent performance

requirements. At its core is an industry-leading, air-bearing technology that delivers nanometer-level error

motion performance with high stiffness and load-carrying capabilities.

•Simple, Straightforward Integration

•E-3R-NGfeatures an advanced bearing design that provides excellent stiffness and high load capacity, while

maintaining compact overall dimensions and reasonably low overall mass. This makes E-3R-NG ideal to use

as a component stage in multi-axis motion systems and precision turnkey machines. E-3R-NG stages can be

mounted with the axis of rotation oriented either vertically or horizontally

Send email to us

Product Detail

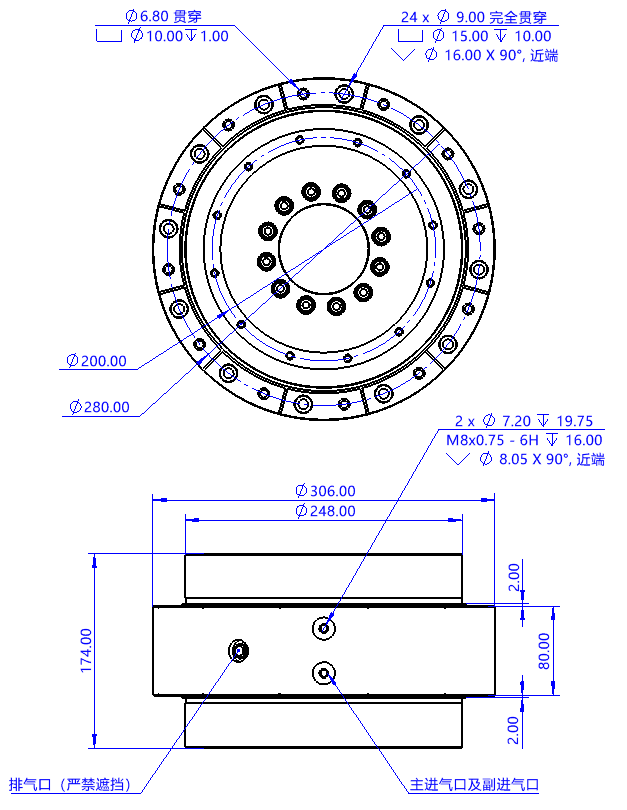

SPECIFICATION

Product Tags

Can be mounted vertically or horizontally
•Design Features
•Delivers best-in-class rotational motion, helping you to optimize your high-precision process
•Minimizes axial-, radial-, and tilt-error motions, reducing the need for extensive post-processing of parts and
measurement data
•Provides generous load-carrying capacity without compromising on motion quality
•Integrates easily into precision systems and machines due to compact, lightweight form factor, as well as
horizontal and vertical mounting and load-carrying capabilities

Previous: EAB-B100 series Rotary air bearing stages

Next: EAB-B250 series Rotary air bearing stages

		Stationary state	working status
Minimum load	Radial direction	1200N	600N
	Axial direction	7000N	3500N
	Flip direction	450Nm	225Nm
Minimum rigidity	Radial direction	230N/um
	Axial direction	1150N/um
	Flip direction	7.5Nm/urad
Synchronous motion error	Radial direction	100nm
	Axial direction	100nm
	Flip direction	1urad
Mass	Total	70kg
	rotor	32kg
Moment of inertia		0.254kg·m2
Max Rotating speed		1,800rpm
Maximum air consumption		45SLPM
