E-GLMT-XY (High Precision Linear Motor Stage) XY Linear motor stage


E-GLMT-XY (High Precision Linear Motor Stage) XY Linear motor stage

Short Description:

● Linear motors

● Linear motors are electromagnetic direct drives. They dispense with mechanical components in the drivetrain and transfer the drive force directly and friction-free to the motion platform. The drives reach high velocities and accelerations. Ironless motors are particularly suitable for positioning tasks with the highest demands on precision because there is no undesirable interaction with the permanent magnets. This allows smooth running even at the lowest velocities and at the same time, there is no vibration at high velocities. Nonlinearity in control behavior is avoided and any position can be controlled easily. The drive force can be set freely.

Product Detail



Product Tags

Highly accurate position measuring with incremental linear encoder

Noncontact optical encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement. Further travel ranges on request.

Application fields

● Medical industry. Laser cutting. Scanning. Biotechnology. Metrology. AOI (Automatic Optical Inspection). Laser marking.

● Travel range 250 mm × 250 mm or 360 mm × 360mm

● Accuracy to 1 µm

● Ironless 3-phase linear motor

● Velocity to 500 mm/s

● Incremental linear encoder with 4.88nm  or 1 nm resolution

● Recirculating linear ball bearing

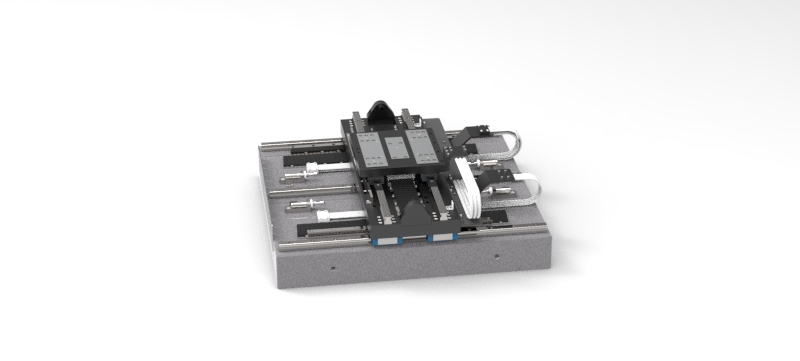

E-GLMT-XY (High Precision Linear Motor Stage) XY Linear motor stage3 (2)

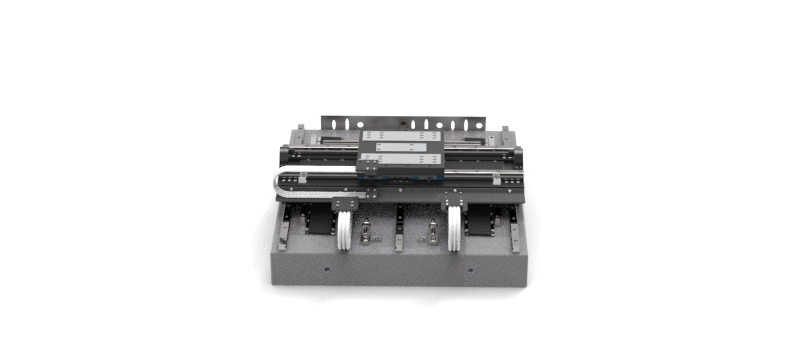

E-GLMT-XY (High Precision Linear Motor Stage) XY Linear motor stage3 (1)

  • Previous:
  • Next:

  • Specification 250×250 360×360
    Motor type Three-phase iron core motor
    Opticval Encode resolution sincos 4.88nm(other higher resolutions are optional)
    X axes Motor thrust[N] Continuous 220N peak 440N
    Y axes Motor thrust[N] Continuous 330N*2 Peak 660N*2
    X axes No-load acceleration[g] 4.5G
    Y axes No-load acceleration[g] 3G
    Min step size[nm] 10nm (with nanopwm or linear driver)
    Travel [mm] 250×250 360×360
    Repeatability  Accuracy [um] ±0.5(can better) ±0.5(can better)
    Accuracy [um] ±1 ±1.5
    Flatness [um] ±2 ±3
    Straightness  [um] 1.5 1.5
    Max Speed [mm/s] 500mm/s
    Max load [kg] 50kg


    1) What is the MOQ?
    A: MOQ is 1 pcs.
    Sample is available for customer to check the quality before bulk order.

    2) Do you accept OEM?
    A: Yes, OEM and ODM is warmly welcomed.
    It is our company’s strength, we can customize the LCD monitor so that can fully meet customers’ requirements.

    3) What payment methods does your company accept?
    A: T/T, Western Union, Paypal and L/C.

    4) What’s the delivery time?
    A: Sample: 2-7 working days. bulk order 7-25 working days.
    For customized products, delivery time is negotiable.
    We will try our best to meet your delivery time.
