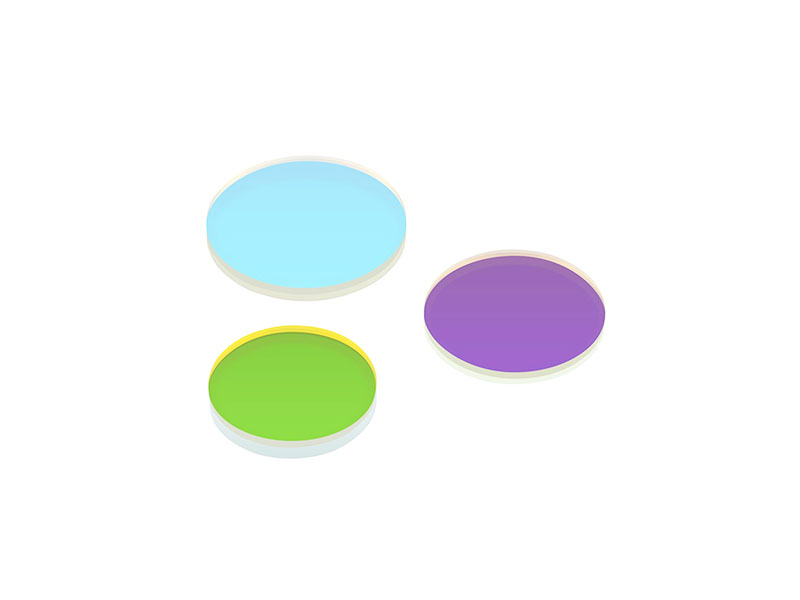

The narrow band filter optical lenses
Short Description:
The so-called narrow-band filter is subdivided from the band-pass filter, and its definition is the same as that of the band-pass filter, that is, the filter allows the optical signal to pass through in a specific wavelength band, and deviates from the band-pass filter. The optical signals on both sides are blocked, and the passband of the narrowband filter is relatively narrow, generally less than 5% of the central wavelength value.
The main function of the narrow-band filter is to pass light of a specific wavelength and reflect (or attenuate) optical components of light of other wavelengths. The half-wave width is usually controlled at 20nm or less, and can be used in ultraviolet, visible light, near-infrared wavelengths, and far-infrared bands. Our company’s narrow-band filters are formed by high-vacuum evaporation of multi-layer hard films and ion-assisted deposition of nanomaterials. Good compactness and high imaging definition.
Product advantages:
One-piece without gluing
Hard coating, long service life
Accurate wavelength positioning
Ion evaporation, small temperature drift
High penetration rate
High cut-off depth
Application fields
Fluorescence analyzer, microplate reader, cable TV upgrade equipment, wireless transmission equipment, mobile phone barcode scanning, infrared electronic whiteboard, infrared camera, infrared touch screen, iris recognition, infrared medical equipment, infrared ink recognition, red film recognition, face recognition sensor device system. Handheld infrared laser range finder, laser range finder, optical instrument, medical and health equipment and testing instrument.
Product specifications
365nm narrowband filter, 380nm narrowband filter, 394nm narrowband filter, 405nm narrowband filter, 420nm narrowband filter, 430nm narrowband filter, 440nm narrowband filter, 450nm narrowband filter 465nm narrowband filter, 470nm narrowband filter, 490nm narrowband filter, 520nm narrowband filter, 532nm narrowband filter, 546nm narrowband filter, 550nm narrowband filter, 560nm narrowband filter, 570nm narrowband filter, 580nm narrowband filter, 590nm narrowband filter, 600nm narrowband filter, 620nm narrowband filter, 635nm narrowband filter, 648nm narrowband filter, 654nm narrowband filter, 660nm narrowband Filter, 670nm narrowband filter, 690nm narrowband filter, 720nm narrowband filter, 740nm narrowband filter, 760nm narrowband filter, 780nm narrowband filter, 808nm narrowband filter, 810nm narrowband filter 830nm narrowband filter, 845nm narrowband filter, 850nm narrowband filter, 860nm narrowband filter, 870nm narrowband filter, 880nm narrowband filter, 905nm narrowband filter, 940nm narrowband filter, 980nm narrowband filter, 1000nm narrowband filter, 1050nm narrowband filter, 1064nm narrowband filter, 1080nm narrowband filter.
