E-EMSLM-100X100-XY-E50 Upright Industrial Microscope Linear Motor Stages

Products

E-EMSLM-100X100-XY-E50 Upright Industrial Microscope Linear Motor Stages

Short Description:

Matching Microscope Model:

● OLYMPUS BX5153

● ZEISS AXIO SCOPE A1

● NIKON Ci

● Sunny RX50

● Accept other microscope model customization


Product Detail

FAQ

Product Tags

Main Dimensions And Performance Parameters:

●Stroke: 100mm x 100mm

● Grating resolution: 50nm

●Minimum step size: 100nm

●Repeat positioning accuracy: ≤±250nm

●Maximum speed: ≥300mm/s

●Rail type: cross roller guide

●Maximum load: ≥5kg

●Direct drive mechanism, no backlash

●Main material: aviation grade aluminum alloy

●Surface treatment: sandblasting and hard anodic oxidation on the upper sliding table anodized, and the rest of the structural parts are generally anodized

Product Model Naming Rules

EMSLM-100X100-XY-E50

○1 ○2 ○3 4○

○1 MSLM is the English abbreviation of Linear Motor Microscope Platform

○2 100x100 represents the effective stroke of this type of product, in mm, if you need other strokes, you can contact the manufacturer to communicate and customize

○3 XY represents the direction and type of the working axis, and the default direction is confirmed according to the Cartesian coordinate system

○4 E50 represents the resolution of this type of product grating, the unit is nm, the default product resolution is 50nm, optional 20nm\100nm\0.5um\1um\5um etc. Changes in resolution will lead to changes in the maximum speed of the platform and repeat positioning accuracy. Please consult the manufacturer for details.

Special Attention Items

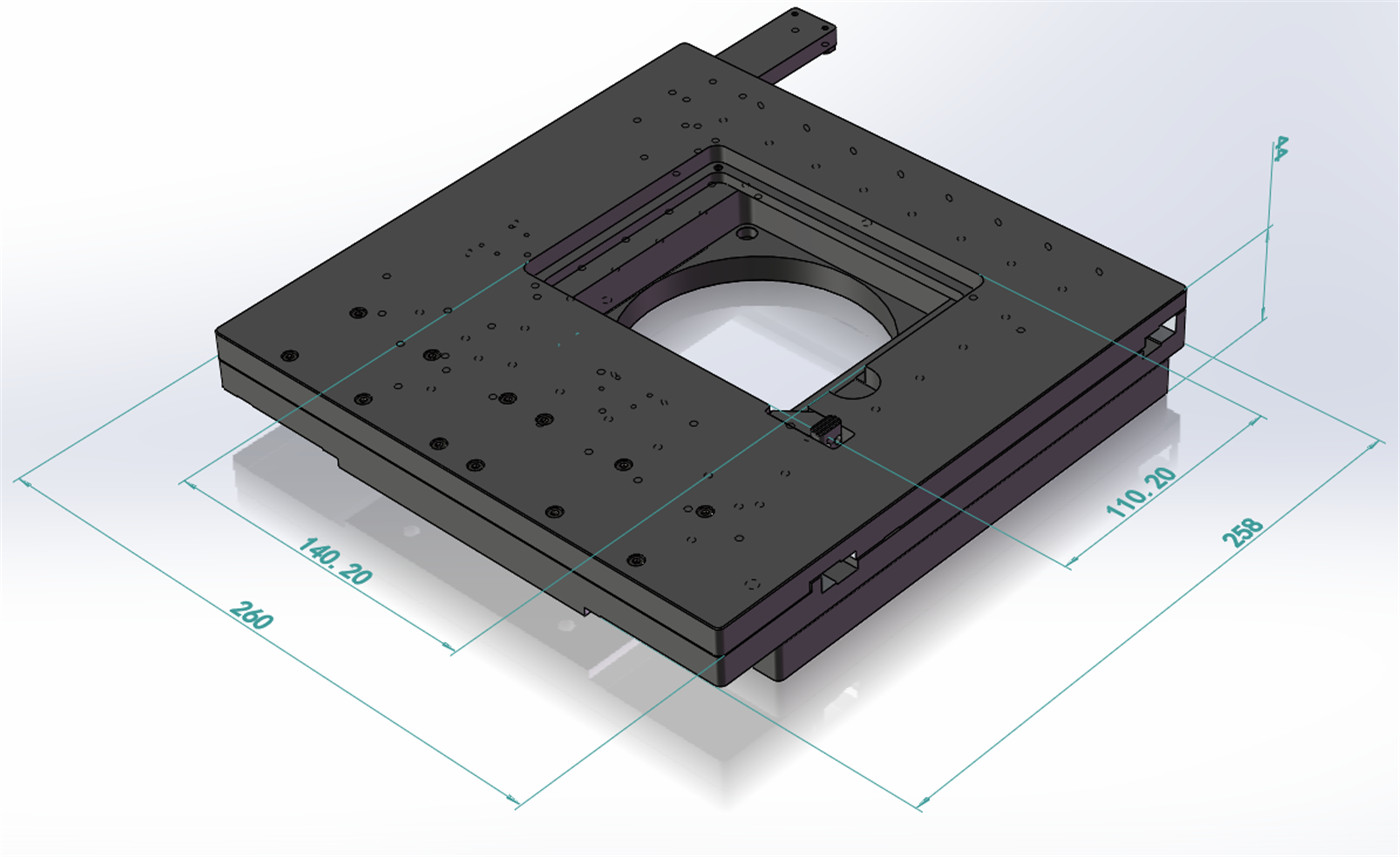

EMSLM-100X100-XY-E50 Upright Industrial Microscope  Linear Motor Stages2

1. The linear motor platform is a high-precision precision equipment, so if you want to get the best performance, you need to ensure a sufficient operating environment, especially in On devices that require repeated positioning accuracy of less than 1um, the reproduction of all indicators needs to meet certain temperature, humidity, air pressure, vibration, etc. For detailed requirements, please contact the manufacturer for further consultation and communication

2. All platforms can be ordered separately. If the precision and performance requirements of the equipment are high, it is recommended to use the MCS controller series produced by ourselves. The products shipped by MCS series controllers will be optimized and calibrated in the factory inspection, which is your first choice for high-demand use.


  • Previous:
  • Next:

  • 1) What is the MOQ?
    A: MOQ is 1 pcs.
    Sample is available for customer to check the quality before bulk order.

    2) Do you accept OEM?
    A: Yes, OEM and ODM is warmly welcomed.
    It is our company’s strength, we can customize the LCD monitor so that can fully meet customers’ requirements.

    3) What payment methods does your company accept?
    A: T/T, Western Union, Paypal and L/C.

    4) What’s the delivery time?
    A: Sample: 2-7 working days. bulk order 7-25 working days.
    For customized products, delivery time is negotiable.
    We will try our best to meet your delivery time.
