ECDR60 Micro Rotation stage

Short Description:

Precision rotary stages, also called rotation stages, are used to restrict motion to a single axis of rotation and precisely control circular position for that axis of rotation. Dover Motion offers a range of standard high precision rotary stages and rotary tables, though our core strength is collaborating with our clients to configure the right precision motion solution for their unique application.

Our Rotary stage are equipped with stiff crossed roller bearings and a precision worm gear drive to ensure outstanding angular accuracy and repeatability.

Send email to us

Product Detail

Specification

Product Tags

Previous: E- DDRE460 Large Hollow Rotation Stage

Next: E-SVMMS60-X25 Micro Linear Stages

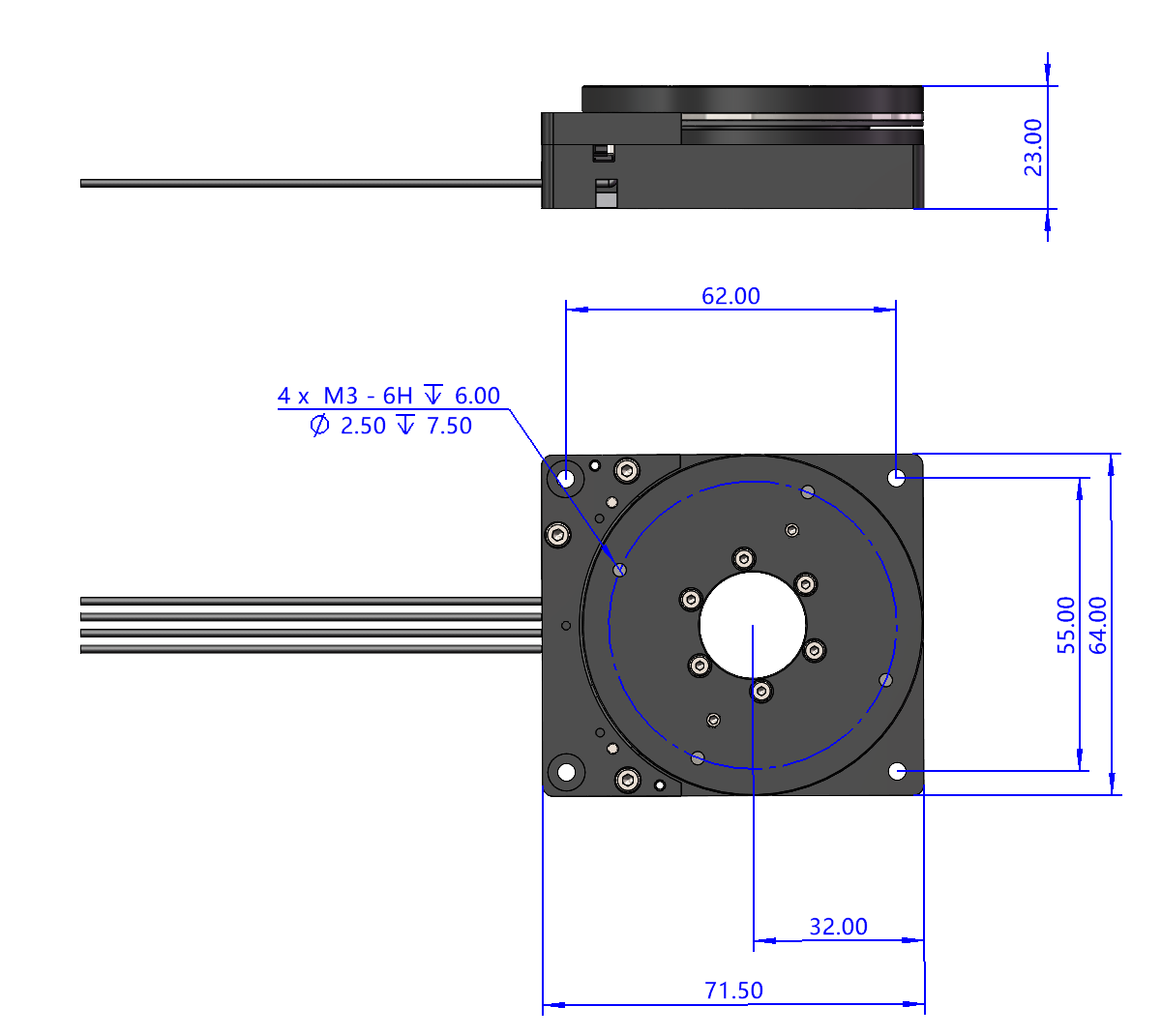

Specification	E-ECDR60
Motor type thrust	Direct drive motor
Resolution	20-bit absolute encoder, 1,048,576 pulses per turn 1.23sec resolution
Travel	360deg Continuous
Torque	Rated 0.07Nm Peak 0.3Nm
Repeat positioning accuracy	≤±5sec
Minimum step length	10sec
End face runout	≤±5um
Maximum speed	≥300rpm
Max Load capacity	≥1.5kg
Structural material and surface treatment	Aluminum alloy hard anodizing
