E-NLS50-20-1V-B Ultra-Thin Mini Nano positioning stage Compact Linear Stage high precision


E-NLS50-20-1V-B Ultra-Thin Mini Nano positioning stage Compact Linear Stage high precision

Short Description:

The NLS series uses a specially customized voice coil motor, combined with high-resolution gratings and precision cross roller guides, in the mini.

The small size also has the same high precision and high dynamics as the UMS series. Especially suitable for some applications that are very sensitive to volume scene.

● Non-contact direct drive motor, ultra-high precision and excellent dynamic performance;

● Ironless motor, the speed fluctuation is less than one thousandth (combined with the specified type of drive, laboratory environment test data);

● Quiet and anti-creep guide rails to ensure micro-step control;

● Long service life, maintenance-free use for a long time;


Product Detail



Product Tags

● Ultra-thin design, never thinner

● Fast scanning and positioning

● Travel ranges 20mm, 32mm, 50mm

● Minimum step 50nm

● Max. velocity 200 mm/s

● Crossed roller bearings for the highest precision

● voice coil motor drive

● Ultra-thin design, never thinner Fast scanning and positioning;

● Travel ranges 20mm, 32mm, 50mm,Minimum step 50nm,Max. velocity 200 mm/s;

● Crossed roller bearings for the highest precision voice coil motor drive;

● Ultra-thin, linear motor drive. stroke 20mm;

● Extremely small size, profile 52mm x 56mm x 15mm;

● 50 nm minimum incremental motion;

● Repeat positioning accuracy: ≤100nm;

● Grating resolution 1nm (1vpp);

● Rated thrust 1N Peak thrust 2.5N;

● Imported cross guide rail;

● Maximum load: 2Kg;

● Smooth continuous motion, industrial-grade service life;

● Fast start, fast response;

  • Previous:
  • Next:

  • Specification Parameter
    Travel 20 mm
    Encoder type Optical encoder(1Vpp)
    Resolution 1 - 5nm
    Effective minimum displacement 50nm(-S format accuracy 20nm)
    Repeatability accuracy ±100nm (-S format accuracy ±50nm ,)
    Rated pushing force 2N
    Peak push and pull force 5N
    Max speed 200mm/s
    Acceleration(no load) 4G
    Load in horizontal 2KG
    Motor drive form Special tiling linear motor
    Guide rail Cross Roller Guide

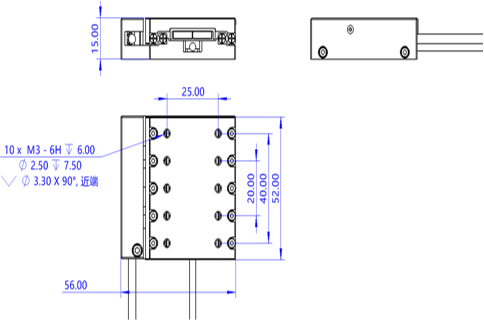

    Size 82mm x 52mm x 16mm
    Length of cable 3m
    Material Aluminum alloy (optional stainless steel)
    Driver interface USB; Dual RJ45 100Mbps EtherCAT
