E-NLS60-32-1V-B NLS Ultra-Thin Mini linear motion stage

Products

E-NLS60-32-1V-B NLS Ultra-Thin Mini linear motion stage

Short Description:

● The NLS series adopts a specially customized voice coil motor, which combines high-resolution grating and

● Precision Cross Roller Guide, in Mini

● The small size also has the same high precision and high dynamics as the UMS series. especially suitable for some Application scenarios that are very sensitive to volume.

● Non-contact direct drive motor, ultra-high precision and excellent dynamic performance

● Ironless motor, the speed fluctuation is less than one thousandth (combined with the specified type of drive, the experiment room environment test data)

● Quiet and anti-creep guide rails to ensure micro-step control

● Long service life, maintenance-free use for a long time


Product Detail

SPECIFICATION

FAQ

Product Tags

● LS60-32-1V-B Features

● Ultra-thin, linear motor drive. Stroke 32mm

● Extremely small size, profile 82mm x 60mm x 16mm

● 50 nm minimum incremental motion

● Repeat positioning accuracy: ≤100nm

● Grating resolution 1nm (1vpp)

● Rated thrust 2N Peak thrust 5N

● Imported cross guide rail

● Maximum load: 2Kg

● Smooth continuous motion, industrial-grade service life


  • Previous:
  • Next:

  • Specification Parameter
    Travel 32 mm
    Encoder type Optical encoder(1Vpp)
    Resolution 1 - 5nm
    Effective minimum displacement 50nm(-S format accuracy 20nm)
    Repeatability accuracy ±100nm (-S format accuracy ±50nm ,)
    Rated pushing force 5N
    Peak push and pull force 16N
    Max speed 200mm/s
    Acceleration(no load) 4G
    Load in horizontal 4KG
    Motor drive form Special tiling linear motor
    Guide rail Cross Roller Guide

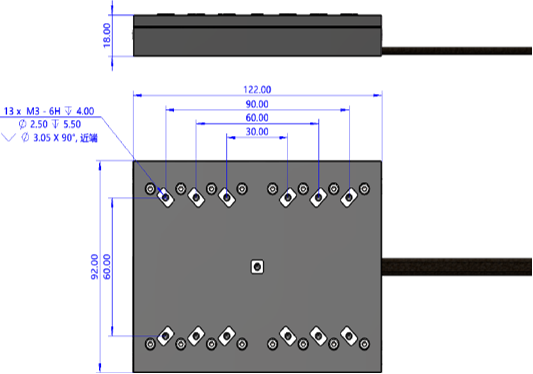

    Size 122mm x 92mm x 18mm
    Length of cable 3m
    Material Aluminum alloy (optional stainless steel)
    Driver interface USB; Dual RJ45 100Mbps EtherCAT

    NLS60-32-1V-B
