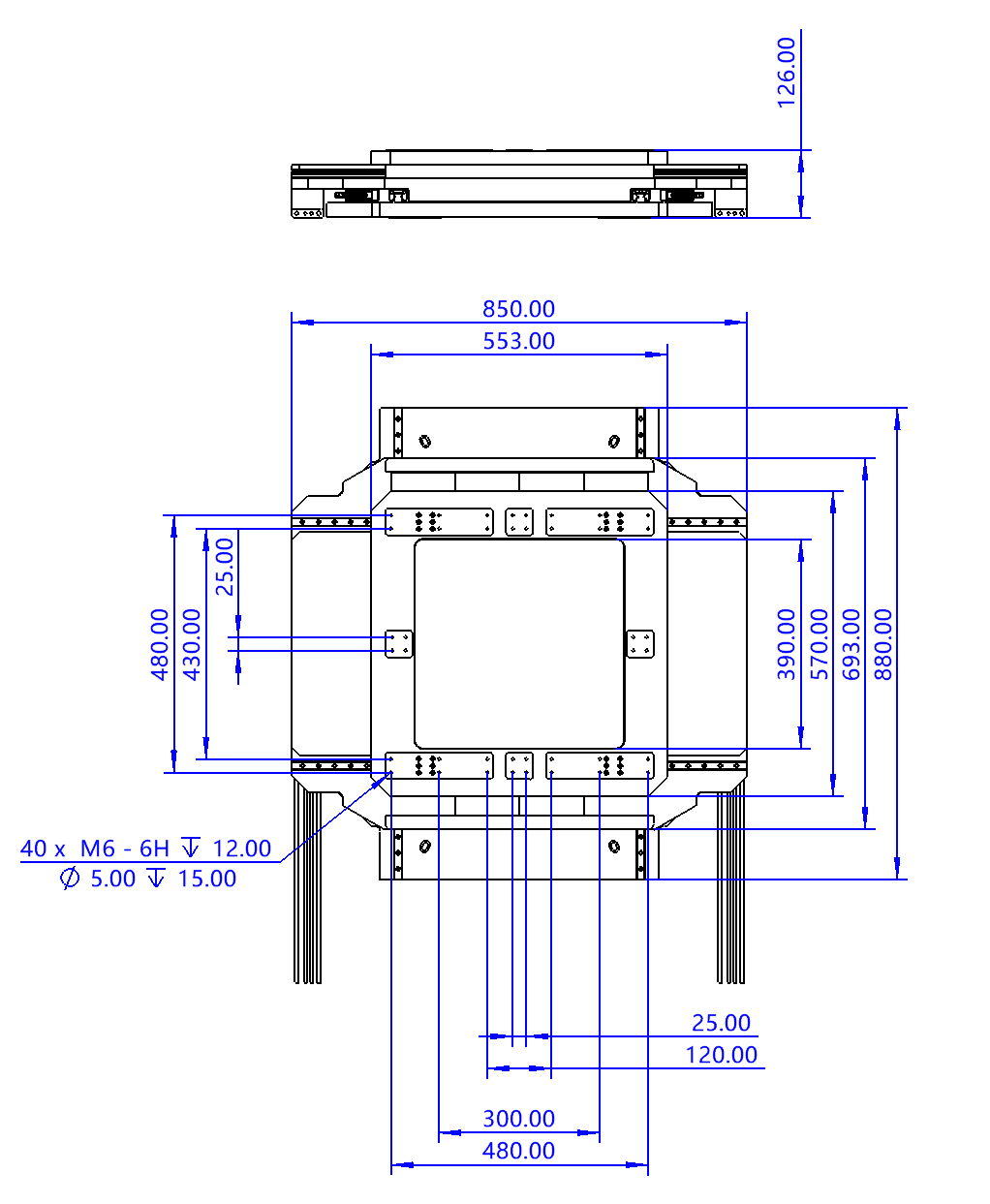

E-LMTE390-XY-330X330 Large travel hollow linear motor stage
| Specifcation | X-axis | Y-axis |
| Motor type | Dual linear motor drive | |
| Raster resolution | sincos 4.88nm（Optional absolute value or higher resolution） | |
| Motor thrust | Continuous 60N/Peak 210N | Continuous 120N/Peak 420N |
| Minimum step size [nm] | 50nm(Paired with nanopwm or linear driver) | |
| Travel [mm] | 330 | 330 |
| Repeatability | ±0.25 | |
| Positioning accuracy [um] | ±1（Interferometer calibration） | |
| Flatness [um] | ≤±2.5um | |
| Straightness [um] | ≤±1.5um | ≤±2um |
| Maximum speed [mm/s] | 1000 | |
| Maximum acceleration [g] no load | 1.5g（X alex）1g（Y alex） | |
| Maximum load [kg] | 30 | |
